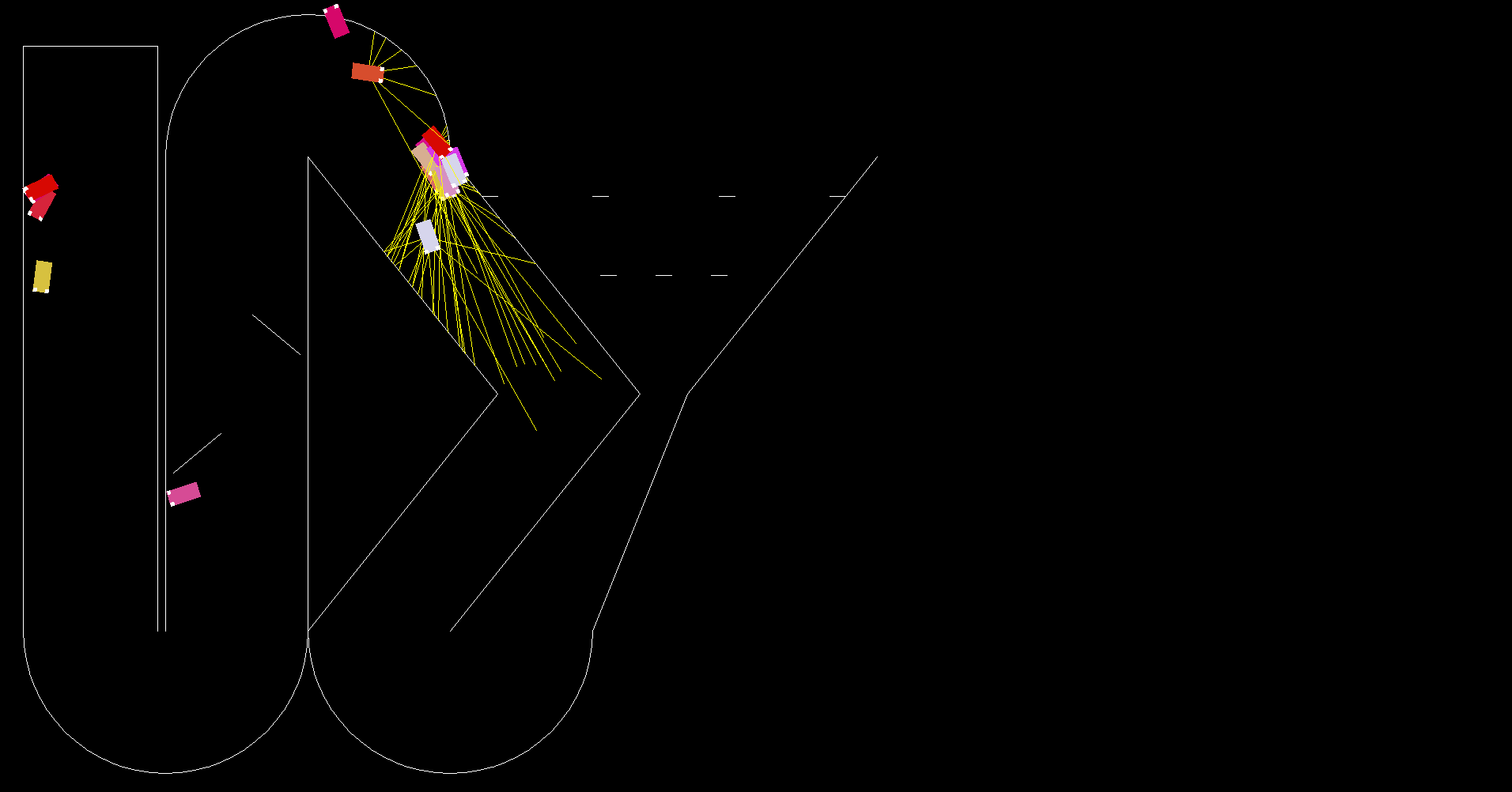

Driving Neural Network

Simulating the Future of Autonomous Driving for Virtual Test Environments

The future of AI

JAVA - Deeplearning4j - Neural Network - Multithreading - Buffering - Event Handling - Graphics2D

Github Link - https://github.com/andy7937/neural-network-aicar

Context

This project was created to simulate the future of autonomous driving for virtual test environments. The neural network was trained using a genetic algorithm to navigate a virtual car around a track. The code was written in Java and used the deeplearning4j API for the neural network configurations. This was the first project that I had begun without any structural help from a tutor or supervisor, meaning that I had to learn how to implement a neural network, genetic algorithm, and the deeplearning4j API from scratch. The project was a success and the car was able to navigate around the track with a high level of accuracy.

Skills and Techniques

Many skills and techniques were learned during the development of this project, such as how neural networks function, how to calculate distances in a 2D space, what inputs to use, and how to train the network using those inputs to achieve the desired output. One of the key insights that I learned was that the neural network was only as good as the data that was fed to it. I go over more of the information that was learnt about neural networks and the configuration that was used in my project in the section below.

Neural Network

The neural network is configured with three layers: the input layer, the hidden layer, and the output layer. The input layer is connected to the hidden layer using the XAVIER weight initialization function, which helps to maintain the variance of activations and gradients across the layers. The hidden layer uses the RELU activation function to introduce non-linearity, allowing the network to learn more complex patterns. The output layer uses the Softmax activation function for multi-class classification.

The neural network is trained using a genetic algorithm, a type of optimization algorithm inspired by natural selection. This algorithm evolves the weights of the neural network to achieve the desired output. It starts by creating a population of individuals, each representing a set of weights for the neural network. The individuals are evaluated based on their fitness(how long they live). The fittest individuals are selected to reproduce, creating a new generation. This process is repeated over many generations until the desired performance is achieved.

Additionally, the Adam optimizer is used during training, an optimization algorithm that updates the network's weights based on the gradient of the loss function. Adam calculates the first and second moments of the gradient and uses them to adjust the weights, helping to minimize the loss function. The loss function used here is cross-entropy (not mean squared error), which measures the difference between the predicted output and the actual output.

The neural network is trained using a dataset of inputs and outputs, where the inputs are the distances between the car and the walls in each sensor direction, and the output is the turn direction (left or right). While the genetic algorithm is used for evolving the weights, during each generation's evaluation, backpropagation is employed to fine-tune the network. Backpropagation updates the weights based on the gradient of the loss function. The learning rate, set at 0.01, is a hyperparameter that controls the magnitude of weight updates during training.

Mistakes and Insights

One such mistake was I inputted the coordinates of the nearest walls to the car in each sensor direction. This was completely useless for the neural network, as it was unable to determine the distance between the car and the wall. After fiddling with the code and repeatedly trying to figure out the mistake, I finally realized that instead of giving the coordinates of the wall, I should have given the distance between the car and the wall. This showed me that even very obvious issues can be overlooked, and that it is important to take a step back and look at the problem from a different angle.

Future Improvements

If I were to begin this project again, I would have spent more time researching the deeplearning4j API and further how to implement my own neural network. I would like to have also added more outputs to the neural network, such as the speed of the car, as the car was only able to move at a constant speed.

Another feature I would implement in a better way is how the map is made. The map is currently made using coordinates between the start and end of the walls, meaning that the map is not very flexible. I had implemented a function that allowed you to use your mouse to draw the map, but it was not very user-friendly and was not very accurate. This meant that expanding or creating new maps was very difficult and time-consuming. If I were to do this project again, I would have spent more time researching how to create a map using a more user-friendly method, such as using a map editor.

Reflection

I believe overall this was a very great first project and experience in starting a project in general. One thing I learned was to add more documentation and create a more structured plan before starting the project as currently the classes and methods are not very well documented and the code is not very structured. This made it very difficult to add new features or fix bugs.

Network Analyser

Advanced Packet Analysis: Monitoring, Logging, and Detecting Malicious Network Activity

Network Security and Analysis

C++ - NpCap - Winsock - Network Protocols

Github Link - https://github.com/andy7937/packet_sniffer

Context

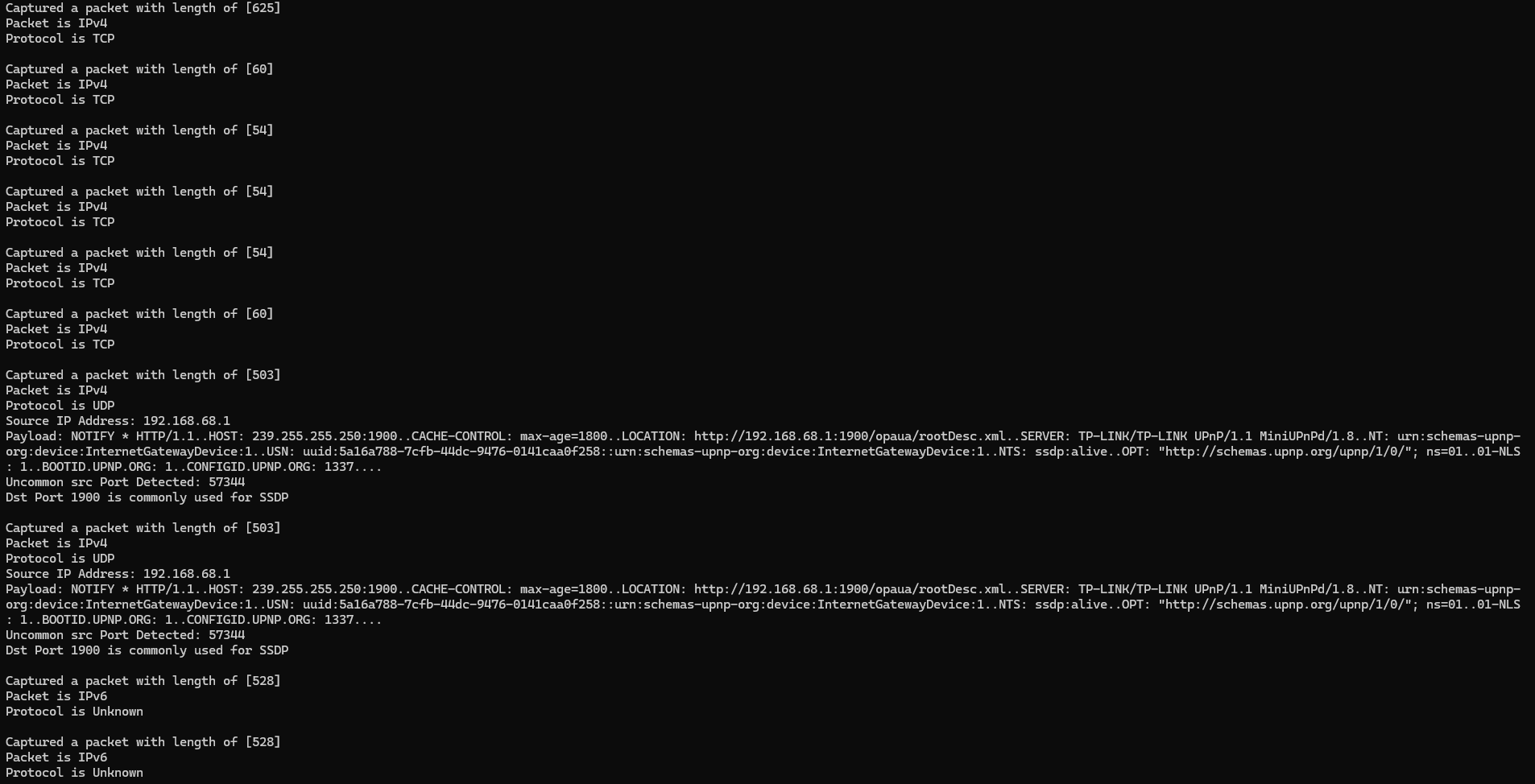

This project began through my interest in network security and the desire to learn more about how networks function. The project was created to simulate a network analyser that could monitor, log, and detect malicious network activity. The code was written in C++ and used the NpCap library to capture packets from the network. The project was a success as it was able to capture packets from the network and Log them into a readable text file. Currently the project is still under development as only the IPv4 section has been implemented, and detailed packet analysis has not been implemented yet. Surface level packet analysis such as the source and destination IP, source and destination port, and the protocol analysis have been completed but further analysis such as payload analysis, packet reconstruction, and packet filtering have not been implemented yet. Further improvements such as anomoly detection on log files will further improve the projects ability to detect malicious network activity.

Skills and Techniques

One of the most important skills learned during the development of this project was understanding how network packets are structured and how to capture and dissect them using the NpCap library. The NpCap library was utilized to capture packets from the network and dissect them into their respective headers. Some key insights included understanding that protocols such as IPv4 and IPv6 have different packet structures, which are further dissected using transport layer protocols such as TCP and UDP. Although not delving deeply into the different layers and structures of packets, the main takeaway was that there are two different models that protocols are referred to by: the TCP/IP model and the OSI model. The TCP/IP model was used in this project as it is more widely adopted and practical for network analysis.

To elaborate, the TCP/IP model is a four-layer model consisting of the Application layer, Transport layer, Internet layer, and the Network Access layer.

The application layer is similar to the application, presentation and session layers of the OSI model. It is responsible for making network requests or responding to requests. Some common protcols used in this layer included HTTP, SMTP, SSH, FTP and DNS

The Transport layer is responsible for delivering data between systems or networks and includes protocols for controlling traffic flow, error checking, and ensuring data integrity. Common protocols in this layer include TCP and UDP.

TCP (Transmission Control Protocol) establishes a connection using the three way handshake process, allowing for reliable data transfer. To go further into detail, TCP protocol first sends a synchronise (SYN) request to a server. THe server then responds with a SYN/ACK packet to acknowledge the request and establish a connection. The client then sends an ACK packet to confirm the connection. This makes it ideal for applications that require data to be delivered in the correct order and without errors.

UDP (User Datagram Protocol) operates as a connectionless protocol and is used for applications that require fast data transfer. It does not guarantee data delivery in the correct order or without errors, making it suitable for applications where speed is more critical than reliability.

The Internet layer is responsible for routing packets to their destination and includes protocols such as IPv4 and IPv6. It ensures delivery to the destination host, regardless of the path taken. This layer attaches IP addresses to the data packets to indicate the sender's and receiver's locations and determines which protocol is responsible for delivering the data packet

The Network Access layer is responsible for the physical transmission of data between devices and includes protocols such as Ethernet, Wi-Fi, and Bluetooth. It ensures that data is transmitted correctly and efficiently.

Mistakes and Insights

One of the key mistakes made during the development of this project was not understanding the structure of network packets and how to dissect them using the NpCap library. This led to a lack of progress in the project as I was unable to capture packets from the network and dissect them into their respective headers. This was a key insight as it allowed me to understand the importance of understanding the structure of network packets and what each header represented in the packet. Another insight was knowing what each acronym in network terms stood for such as TCP, UDP, HTTP, DNS, SNMP, ICMP, ARP, IPv4, IPv6, SSh, FTP, and many more. Understanding the purpose of each protocol and how they interact with each other was crucial in understanding how network packets are transmitted and received.

Future Improvements

Reflection

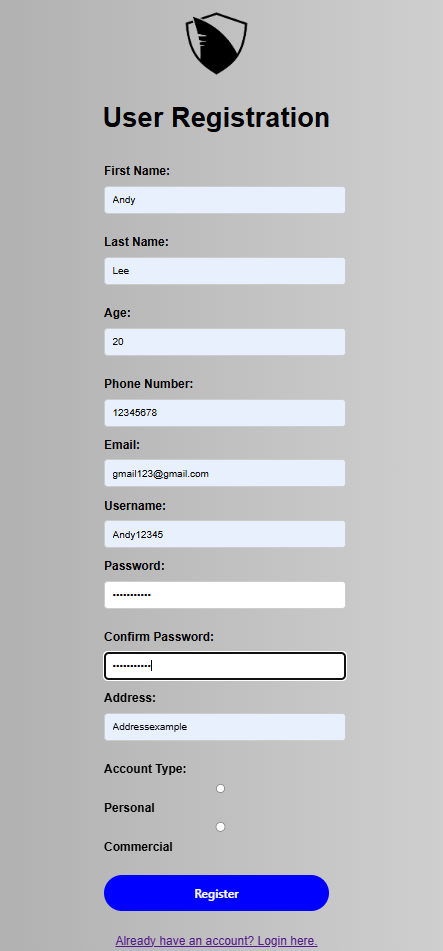

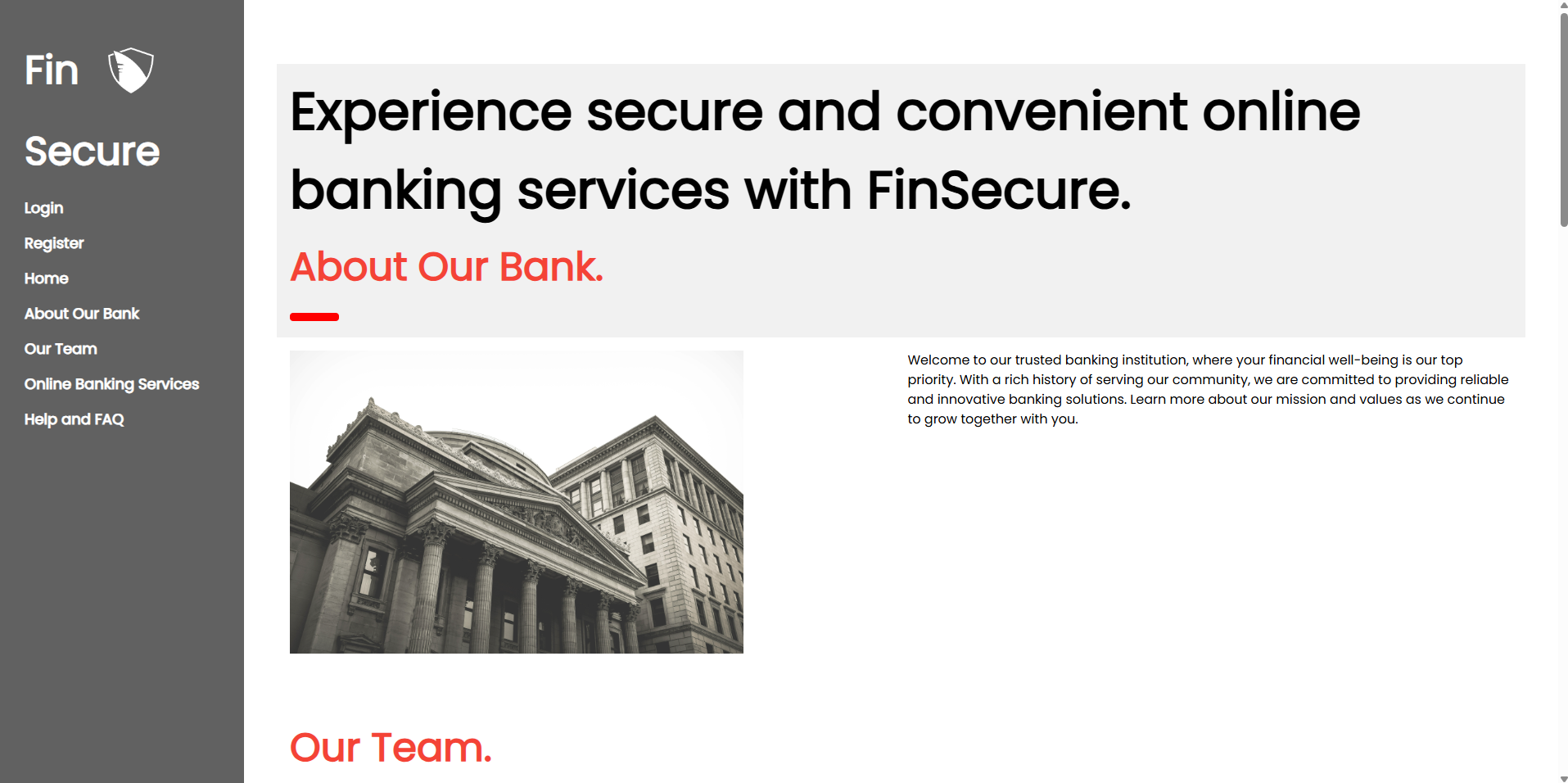

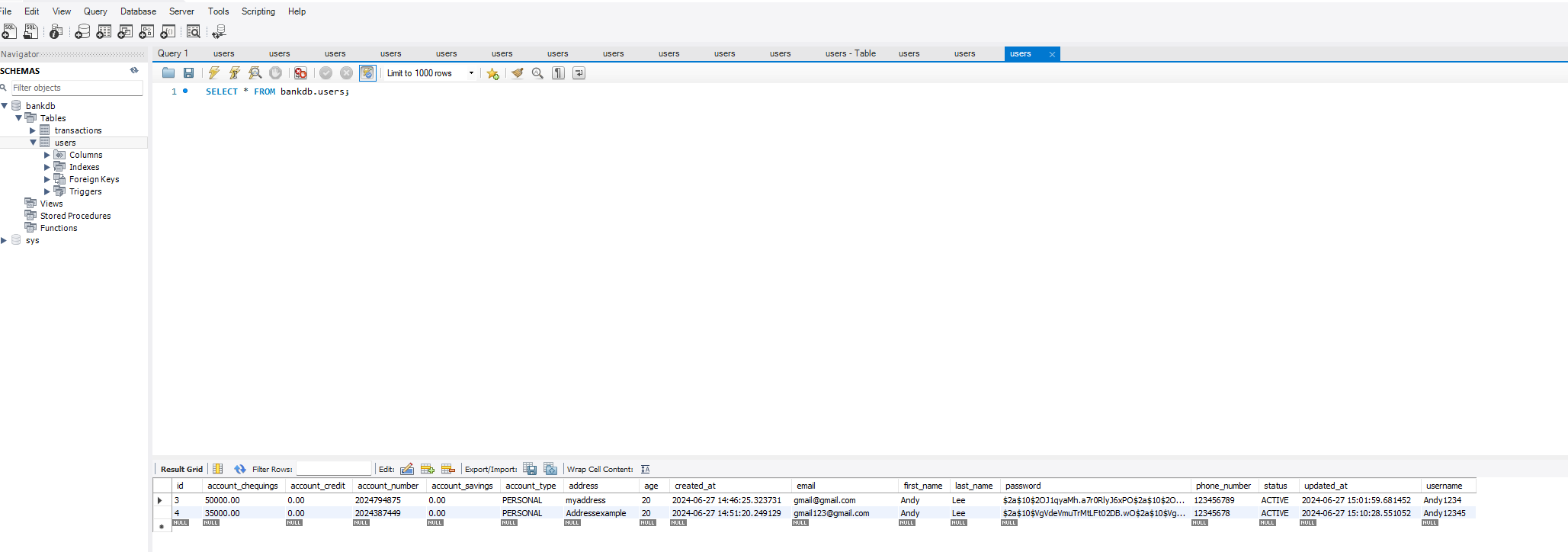

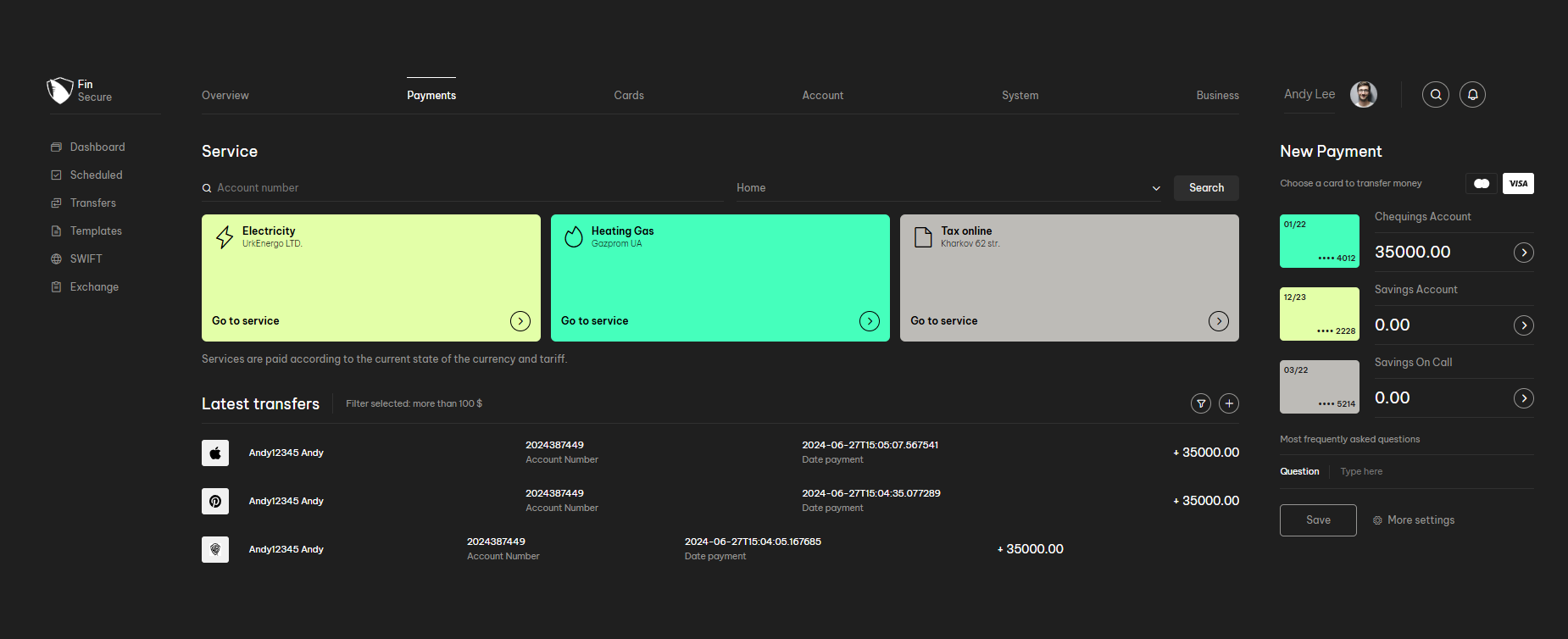

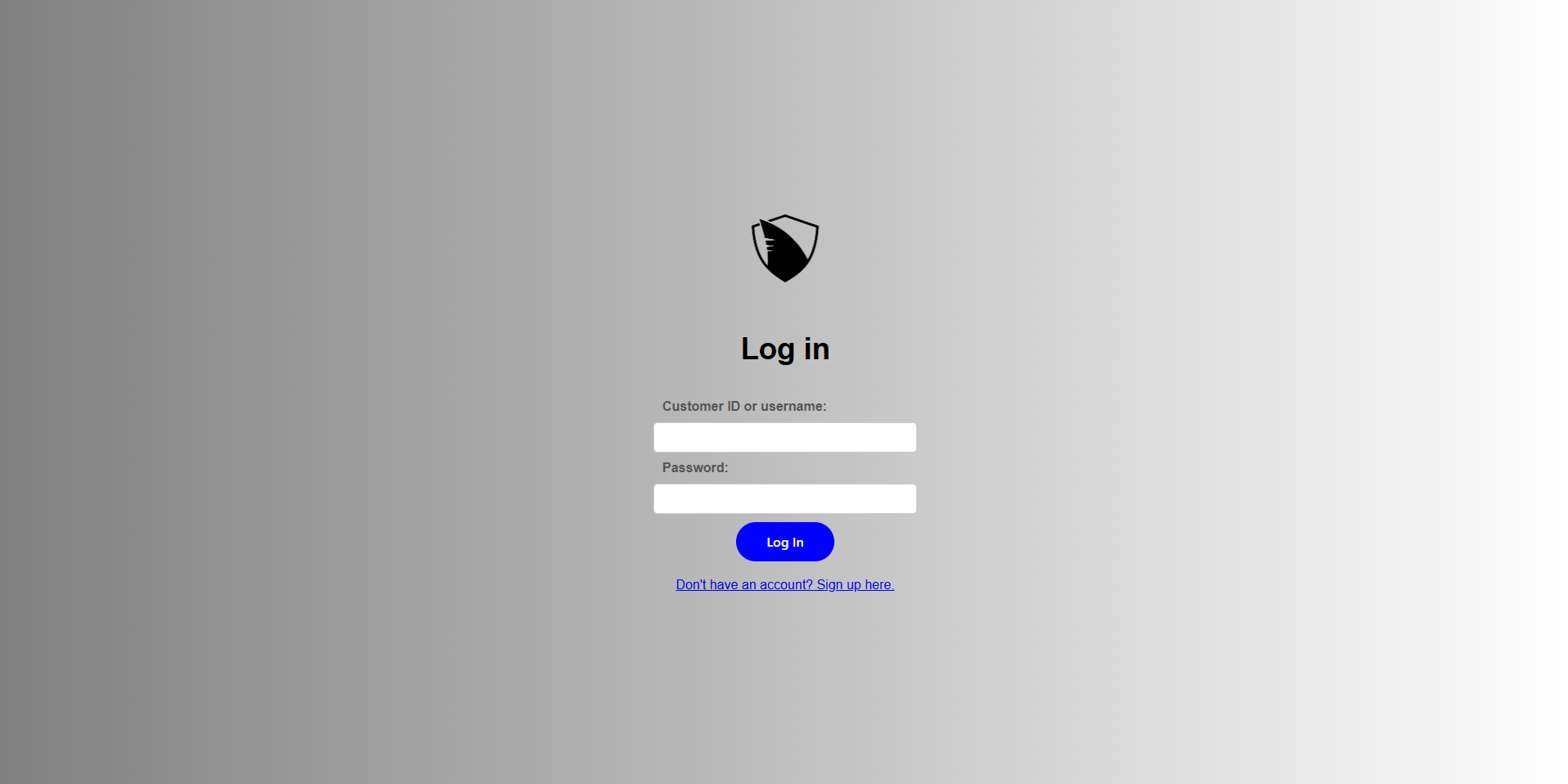

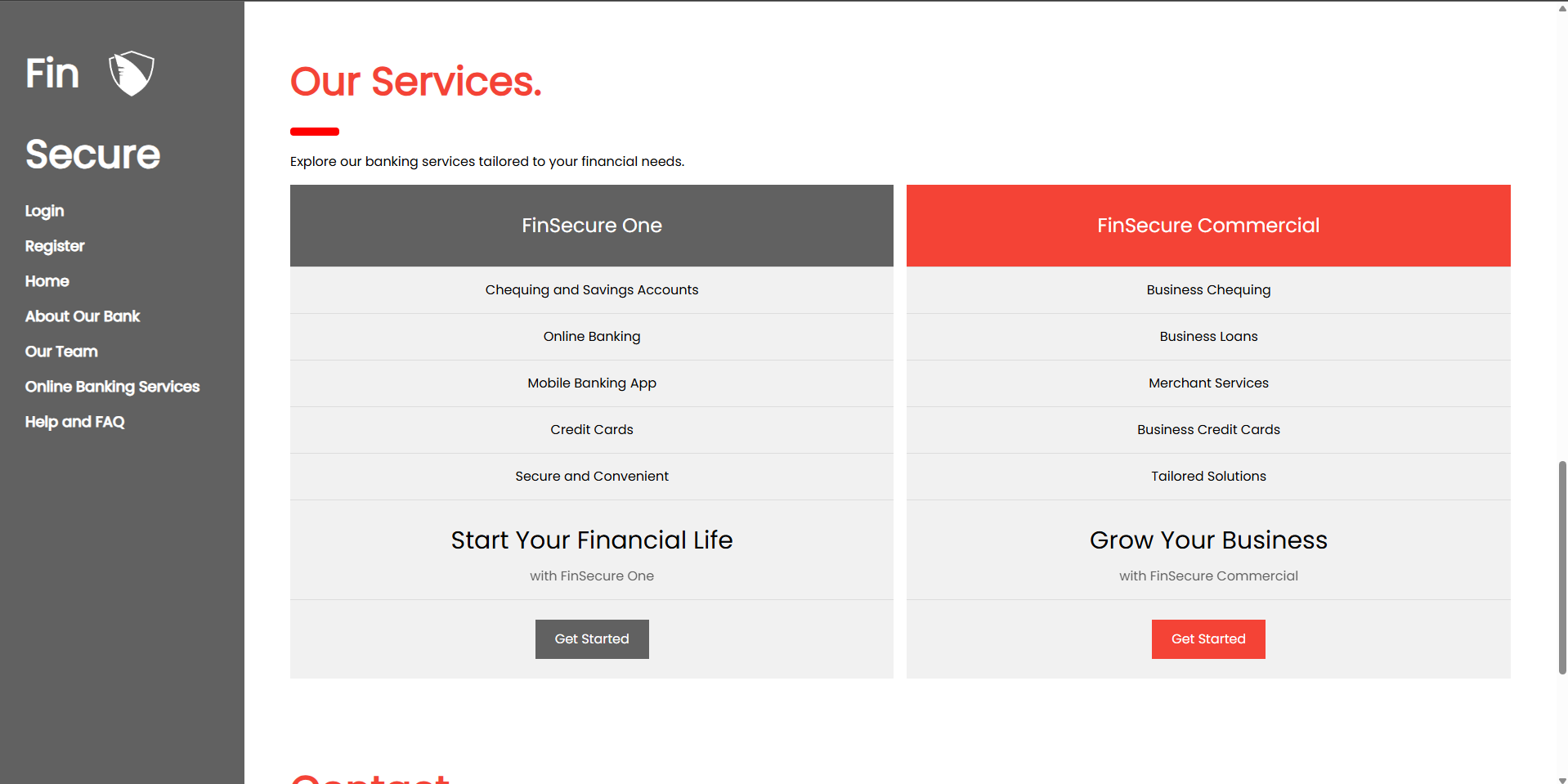

Bank Project

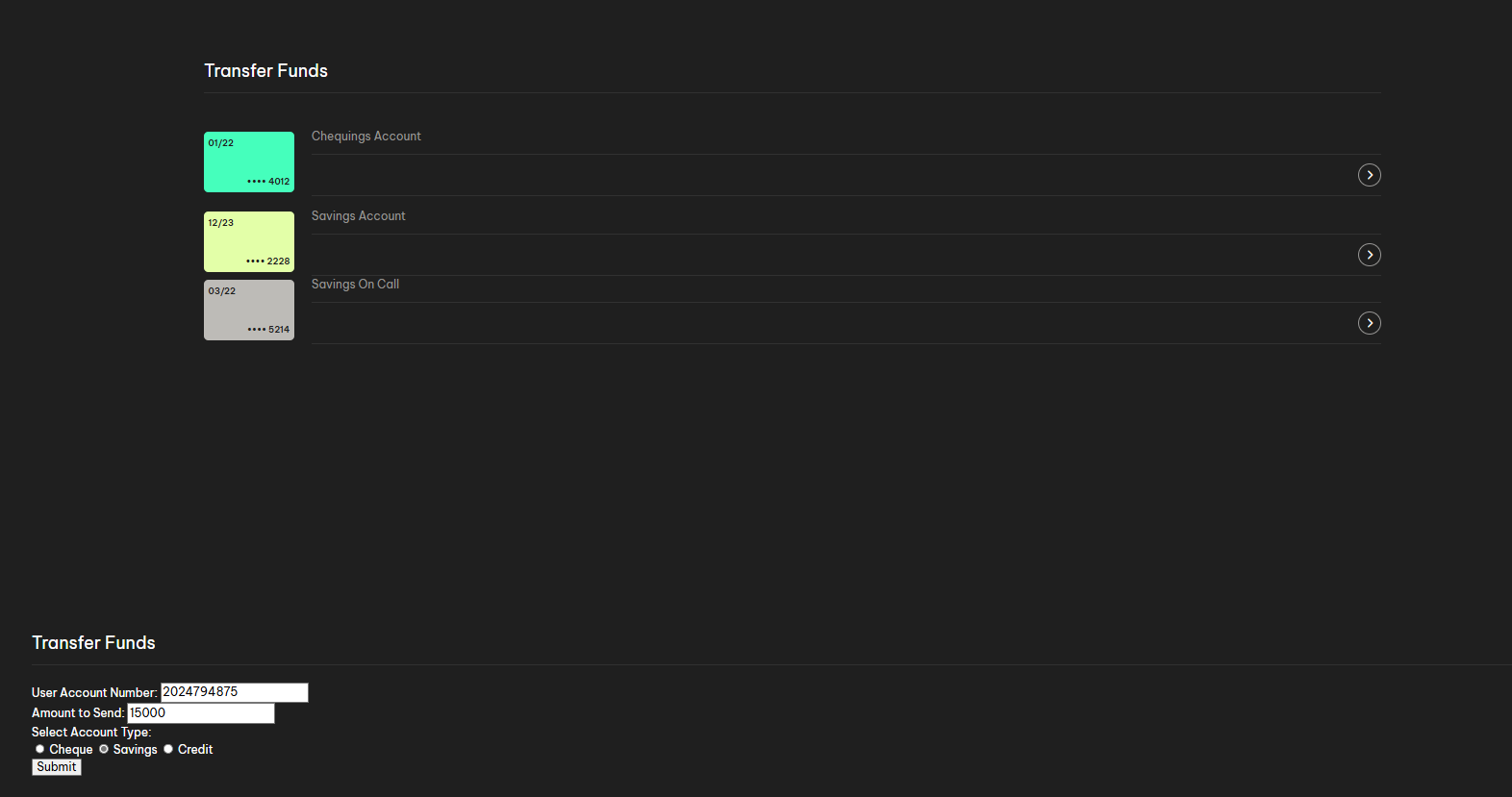

Simulated Bank Management: User Registration, Login, and Secure Fund Transfers with MySQL Integration

Banking System

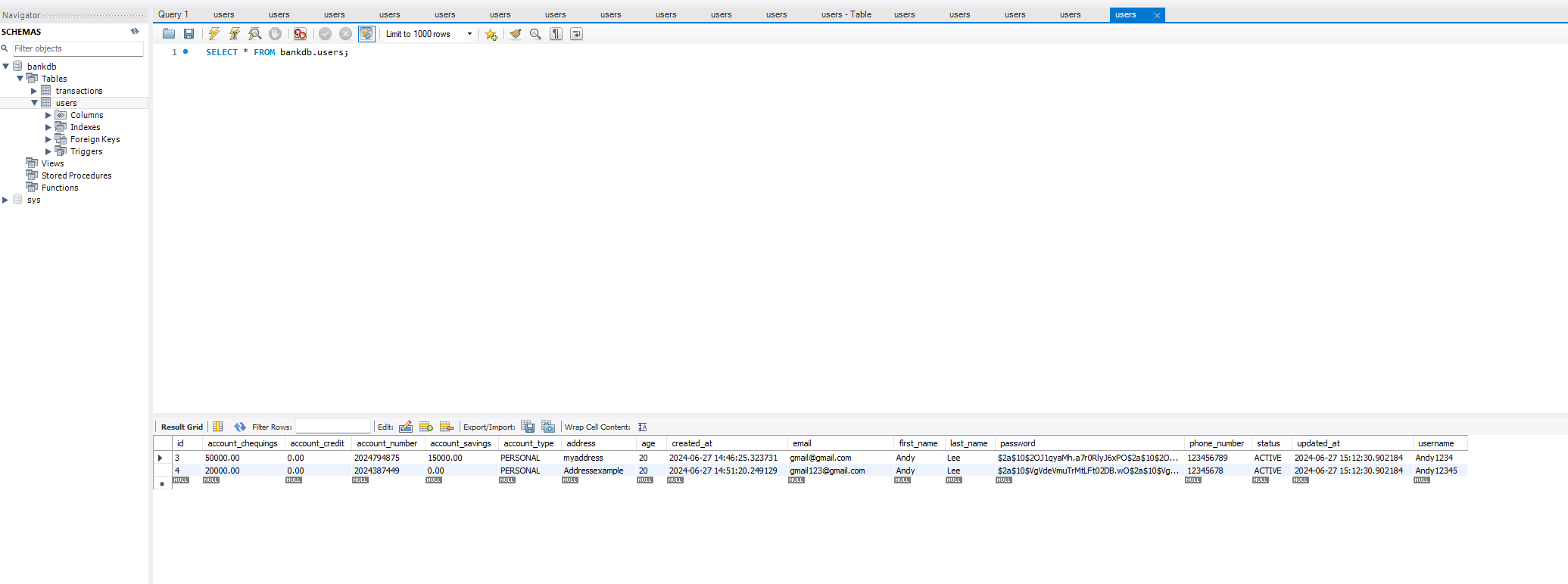

JAVA - SpringBoot - MySQL - HTTP

Github Link - https://github.com/andy7937/internet-banking-software

Context

Skills and Techniques

Mistakes and Insights

Future Improvements

Reflection

Alien AI Game

Simulating Dynamic Interactions with ChatGPT API for an Engaging Gaming Experience

Open AI Integration into Gaming

JAVA - OpenAi - Collaboration

Github Link - https://github.com/andy7937/escape-room

Context

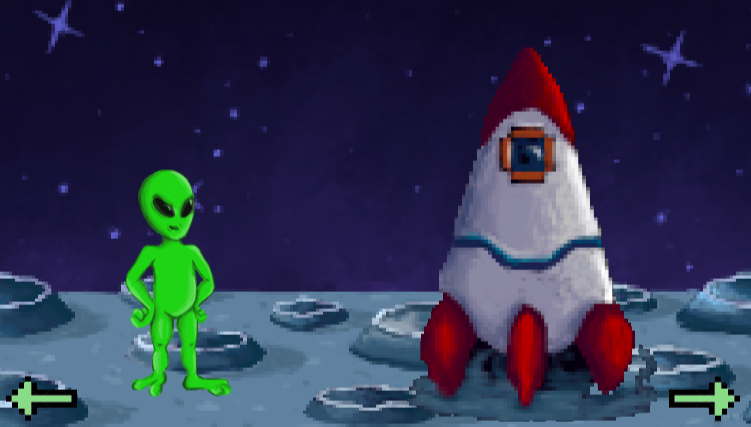

The Alien AI Game was created to simulate dynamic interactions with the ChatGPT API for an engaging gaming experience. The game was created in Java and used the OpenAI ChatGPT API to create a simulated conversation between the user and the alien. The game was a success and the AI was able to generate riddles and hints for the user to solve in order to progress through the game.

Using the GPT API in our application allowed for many opportunities for novelty and creativity to be developed in our project. One such example of this was how we incorporated the AI to interact with the player, specifically with how we had multiple different personalities of different GPT instances in each room. One alien had an angry personality, one had a happy personality, and another had a sad personality, and many more. This meant that when you interacted with each alien in every room, you would get a completely different response for your inputs. This made the game feel much more real and interactive. We incorporated this feature by creating multiple GPT instances for each room and gave them a prompt in which we would tell them the type of personality to take, which resulted in each room having different personalities.

Another cool feature was how you could ask the GPT questions beyond just answering the riddle. For example, you could interact with the alien like a real alien, and ask questions that were outside the scope of the gameplay itself. This helped the game feel more unique from other applications.

This feature was further expanded in the flavour text, where if you were to click on an object, the alien would give a description of the object, which did not need to be hard coded responses but actual responses from the AI, meaning the player would get a completely different description of the object each time they played the game.

Lastly, is the riddle system. A random riddle is always created by the AI for any possible object in the game, increasing the replayability of the game itself due to its randomness. For example, if the object in question for the riddle was a boot, if you played the game and got the same object twice, the riddle itself would be different for each playthrough, therefore even if you were familiar with the objects, solving the riddle itself still poses a challenge for players. GPT API Diagram

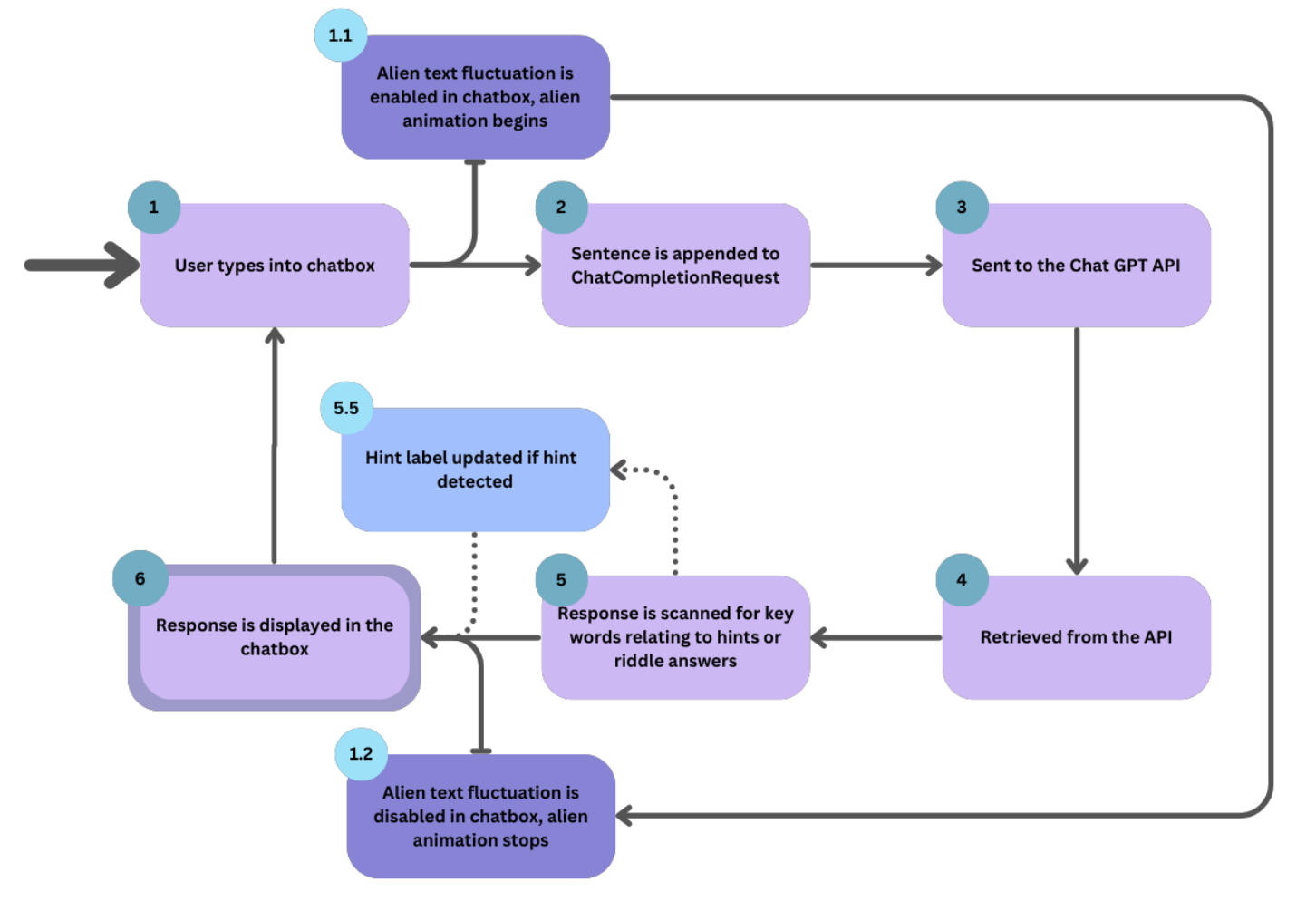

The diagram above shows the process involved when the user interacts with the AI within our application. Each stage of the process is indicated by the numbers displayed within the diagram.

In Stage 1, the user begins with typing the start of their conversation inside the chatbox. Once it has been entered and the user sends the text, the process moves to Stage 1.1, where the text within the text box starts fluctuating with an ‘alien language’, as this is our theme for the game. Along with this, the alien in the current room begins to animate, appearing like it is talking. This, as well as a ‘Translating…’ label that is also made visible, helps indicate to the user that the response from GPT is loading. The user is also unable to type and send any responses at this time. While this happens, Stage 2 appends the inputted sentence from the user to a list stored in the ChatCompletionRequest class. This list stores all previous conversations depending on the alien the user is talking with, and will be sent to the Chat GPT API in stage 3.

A response is then generated and influenced based on the original context given to the AI from the GptPromptEngineering class. In stage 4, this response is retrieved from the API to the ChatCompletionRequest in the form of a ChatCompletionResult. This then is moved to stage 5, where the response is scanned for keywords relating to hints or riddle answers.

When giving the AI context back in stage 3, it was instructed to surround any hints given with ‘###’, and if a riddle was correct, to begin the sentence with ‘Correct!”. If either of these are noticed throughout the scanning process, changes are made in the GUI to reflect this. As seen in stage 5.5, if a hint is detected, then the hint counter will be updated accordingly depending on the difficulty of the level.

As the response is displayed in the textbox, the fluctuating text that was initiated at the start of the loading process is stopped, and the ‘Translating…’ label is made invisible to indicate that the process has stopped loading and has produced a response. From here, the user can now type a response to the AI again.

Skills and Techniques

Integration of Chat GPT API
In order to integrate GPT 3.5 into our application, we used the OpenAI Chat GPT API. This allowed us to create a simulated conversation between the user and the alien.

To do this, we created a ChatCompletionRequest, this allowed us to send a message to the API and receive a response. Each alien in the game was a separate instance of this class, meaning each alien could have a unique prompt and response depending on the user interactions. This also meant that the user’s conversation history with the alien was not carried over to another alien.

The ChatCompletionRequest would be updated each time the user sent a message, the message being added to a list within the class. This list was used to keep track of the chat history. The entire list would be sent to the API each time a new prompt was created.

We added prompt engineering methods to create different prompts depending on the alien, the room they were in, and the player's progress. This meant the aliens had unique personalities and responses. Also, whenever the AI was talking, a “Translating...” label was shown, along with the text fluctuating in an alien language. This added to the immersion and reduced the perception of latency. API Cost Considerations
Whenever we created a new prompt and wanted to test it out, we made sure to do the testing on the OpenAI playground, using the free tokens given to new accounts. This allowed us to study how player interaction would affect the AI without having to actually play the game and potentially use up the limited number of tokens allocated to us.

Furthermore, whenever the user asks for a hint, a new ChatCompletionRequest is created. This means that the full chat history isn’t being sent every time a hint is needed, reducing the number of tokens needed per API request. We also had a different ChatCompletionRequest for each alien, so if the user mostly interacts with a particular alien, and then interacts with a different alien, the chat history isn’t being carried over. Thus, the “useless” chat history of the old alien isn’t needlessly bloating the API calls of the new alien.

One of the features we added was flavor text being generated by the AI when the user clicks on an object. We felt that it added a fun touch to the game, but it came with the cost of using tokens for something that was technically “useless”. So, we added the option to turn off the flavor text, thus saving on API calls.

Finally, we overcame the user-perceived latency of the API calls by justifying the wait within the theme of the game. Since the application is themed around interacting with aliens, we explained the latency as the translation device simply taking some time to process the alien speech. We also added a cool effect of alien text “fluctuating” before being translated into English, reinforcing the theme and making the latency less noticeable.

Prompt Engineering Crafting
The first iteration we made was changing the prompts from the alpha code to better fit the theme of space and aliens. We originally only had one alien, and there weren’t that many issues other than some of the responses feeling slightly bland.

Then, we decided to incorporate multiple aliens. We did this by creating a ChatCompletionRequest for each alien at the start of each round. However, since these ChatCompletionRequests had no prompts in them, if the user directly spoke to an alien using the chat box, they would not act like aliens. This wasn’t a problem in the first iteration as the alien in the main room is given a prompt to explain the game immediately after the game starts. Thus, the aliens in the other rooms would not have this prompt.

To fix this, we added a Prompt Engineering method to the GptPromptEngineering class. This way, all aliens would have the same introduction when initially interacting with the user. Once this was done, there was more iteration with the alien responses and how they interacted with the user. Some aliens were nicer and more helpful, while others were very vague and unhelpful.

API Throttling and Latency
Latency between the front end of our application and the ChatGPT API is an issue that may deter some players from continuing the game, especially if they are waiting too long for a response. However, latency is an issue that we cannot solve entirely, as it depends on multiple factors like the players internet connection, and the current usage of the API.

The biggest issue latency-wise we had was in the generation of riddles for players to solve. As we had the AI generate a random riddle each time, this would take a lot of time due to the AI generating a brand new answer each time. Due to this, we decided to create multiple prompts that would limit the riddle generation and hint giving to multiple scenarios. This meant that depending on the alien and what room they were in, the hint/riddle generation would be much faster as it wouldn’t need to create something brand new.

Another issue we had was the frequency of the API calls. Due to the cost of the OpenAI API, we decided to throttle our API requests so that we wouldn’t waste tokens. This was done by ensuring that each ChatCompletionRequest was stored and appended to, meaning the prompt would be sent, then once a user responded, the prompt and response would be sent. This was faster and reduced the latency. To further throttle the API usage, we added the feature where flavor text was optional. The generation of flavor text was done by calling the API with the same prompt but with a different “intent”. This meant the response would include flavor text.

Mistakes and Insights

GPT Challenges
One big problem was with getting the AI to generate riddles. No matter how much prompt engineering we did, the AI would occasionally generate a riddle, then in the same response, it would give away the answer to the riddle, sometimes adding in other random text. This would happen even after explicitly telling the AI not to do this. To solve this issue, we made the AI surround the riddle with the string “###”. Then, when the AI came back with a response, we had code that used regex in order to detect the string, and extract only the riddle using this string as a marker. This would mean that any irrelevant content would not be shown to the user.

Another problem we encountered was getting the hint system working. We weren’t quite sure how to detect when the AI would give a hint with 100% certainty, and we were worried that the user might ask the AI for a hint to something that it had no context for, causing it to output misleading information.

In order to fix both of these issues, we had users say a specific phrase when asking for a hint. This helped with detecting whenever a hint was being given. Then, the AI would be given the relevant information for the hint depending on the game's progress in order to generate its response. Since the user isn’t able to just ask for a hint about anything, this reduces the likelihood of the AI misunderstanding something and giving false information.

Prompt Engineering Challenges
There were many challenges we faced in prompt engineering. One of the main challenges to this was how the GPT AI would take prompts at face value, and would sometimes add unnecessary context to your prompt that could be incorrect and increase the length of the text, resulting in much more GPT credits being used then anticipated. One way to fix this issue was to give enough context and detail around the prompt in order for the AI to not have any room to misinterpret context.

With the issue of the AI writing too much for their responses, adding a word limit to the prompt stopped the AI from using too many GPT credits.

Also, while responding to user inputs, sometimes the AI would break character of the alien and talk as the GPT AI, which destroyed the immersion of the game. This was fixed by adding in the prompt telling the AI to never break character. This also applied to the consistency of the AI, in which we would need it to not break character throughout the entire game, and sometimes it would randomly change its persona/tone. This was fixed by adding in the prompt to keep its persona for the entirety of the game.

Due to questions asked by the player, sometimes being ambiguous and hard to interpret for AI, the AI would struggle to understand what the player was asking for, leading to confusing responses that would not help the player and in some cases actually hinder the player's progress. This was fixed by mimicking the players perspective and asking questions we thought the player could ask. This helped us understand when and where the AI could get confused, and therefore allowed us to iterate our prompt engineering to be more clear and understandable.

Future Improvements

If we were to continue this project, we would have liked to have added more features to the game. One such feature would be to have the AI generate more than just riddles. We would have liked to have the AI generate more complex puzzles, such as math problems, or even have the AI generate a story that the player would have to solve. This would have added more variety to the game and would have made it more engaging for the player.

Another feature we would have liked to add was seperate endings depending on the player's choices. We would have liked to have the AI generate different endings depending on the player's choices throughout the game. This would have added more replayability to the game and would have made the player feel like their choices mattered. This was not possible due to the time constraints and project specifications given by the client.

Reflection

Incorporating GPT into our escape room application has had a large impact on our perspective on the future of software engineering. One main aspect that we discovered throughout this project, was how easy it was to create a personalised experience for users when taking advantage of AI during the game. Because you can build on previous conversations with the AI, it can create a feeling of uniqueness everytime you play. Exploring this aspect throughout the process of making the escape room game really showed the potential that GPT offers for the future of software engineering. Being able to provide such personalised responses when given context could lead to a future of hyper-personalised experiences for users. Having this ability to use AI could open the door to an era of software that feels more dynamic and intelligent, rather than a fixed application. This however could be quite dangerous as the ethical importance of AI design and security would continue to grow. Due to the large amount of data that would be generated to provide a personalised experience, the privacy aspect of this would need to be taken very seriously as it could lead to serious privacy breaches if not handled with the utmost care. AI security will undoubtedly make a large impact on the future of AI incorporated software design.

AI can produce various opportunities and challenges for professional software engineers in the era of LLMS. After working on this game, one of the opportunities that arose that could be useful for professional software developers is the ability to streamline and automate various aspects of software. With AI, developers have the ability to generate complex and detailed stories which would save time, and potentially be more personalised towards different users. This could help create more unique user experiences, and that way, software engineers can focus their time on higher level tasks. Some of the downsides to this however, is the unreliability of the output from LLMs. The responses can vary and occasionally produce flawed information which could be very detrimental depending on the software. LLMs can also be very expensive. Training and maintaining these models require substantial resources, including powerful hardware and large energy consumption. As well as this, licences and subscription fees could prove to be a major barrier for smaller software companies.
